Setup packages

Status: Preview

Setup packages are currently in preview. Functionality, file format, and behavior may change between releases. Not recommended for production deployments yet.

Most administration work is point-and-click inside a single tenant: create the users, lay out the profiles, configure the components. That is fine for one tenant, painful for ten. The moment you need to ship the same configuration to a sandbox, replicate a customer setup in a fresh environment, or commit a setup to source control so a change goes through review, the manual approach falls apart.

Setup packages are the answer to that. A setup package is a portable, human-readable JSON5 file that describes a Dime.Scheduler configuration - profiles, layouts, users, application settings - in a way you can version, diff, copy, and deploy. Use them to replicate a tenant in one command, share a configuration between instances, or hold a reusable template under git. No code required.

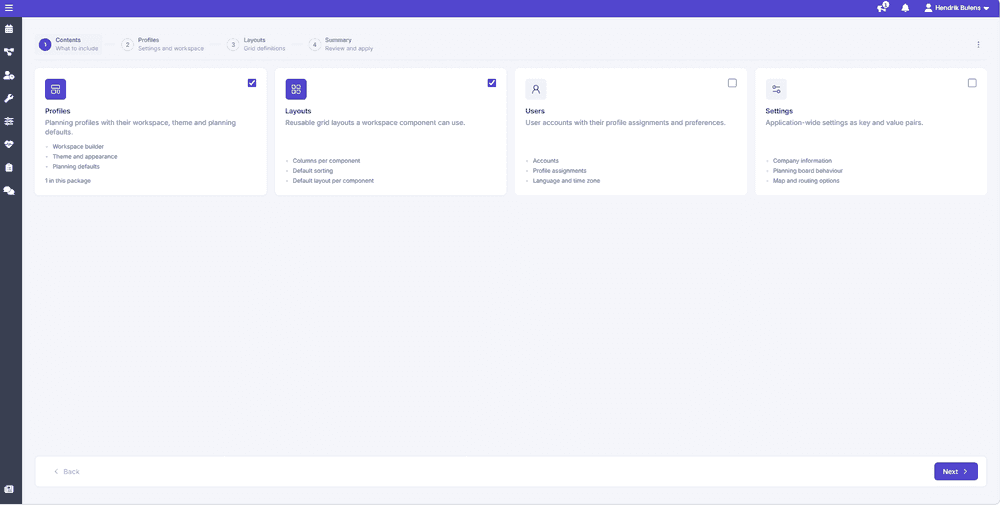

What's in a package

The following entities can be packaged:

Profiles: UI structure using columns, rows, stacks, and components
Layouts: column layouts, sorting, filtering, and contextual settings per component
Users: accounts, roles, profile assignments, categories, time markers, filter values
Configuration: system-wide application settings as key/value pairs

Two ways to use them

Desktop application: visual workspace, guided wizards, first-time setup
CLI: automation, CI/CD pipelines, version control workflows

Packages flow in both directions: import a package from Dime.Scheduler, or build one from scratch and deploy it back. Because the files are human-friendly, they store cleanly in version control and deploy automatically through the CLI.

Quick start

Create a configuration file my-profile.json5:

{
  type: "bundle",
  name: "Complete Setup Package",
  version: "1.0.0",
  owner: "[email protected]",
  notificationEmail: "[email protected]",

  documents: [
    {
        type: "profile",
        payload: {
            name: "Service Planning",
            code: "SERVICE_PLANNING",
            theme: { color: "blue" },
            workspace: [
              {
                type: "column",
                width: 30,
                content: [{ type: "component", component: "openTasks", title: "Open Tasks" }]
              },
              {
                type: "column",
                width: 70,
                content: [{ type: "component", component: "planningBoard", title: "Planning Board", id: "scheduler1" }]
              }
            ]
        }
    }
  ]
}

Validate your configuration:

dimescheduler-setup validate my-profile.json5

Deploy to your Dime.Scheduler instance:

dimescheduler-setup deploy my-profile.json5 --api-key YOUR_API_KEY --env production

Document types

Type	Purpose
`profile`	Workspace configuration including planning settings and the workspace tree.
`layouts`	Grid and component layouts.
`users`	User accounts and permissions.
`configuration`	System-wide application settings.

Every document follows this structure:

{
  type: "profile" | "layouts" | "users" | "configuration",
  payload: { ... }
}

Each document lives in the documents element of the bundle's root node. See bundles.

{
  type: "bundle",
  name: "Complete Setup Package",
  version: "1.0.0",
  owner: "[email protected]",
  notificationEmail: "[email protected]",

  documents: [
    {
      type: "profile",
      payload: {
        name: "Service Planning",
        code: "SERVICE_PLANNING",
        // ... profile configuration
      }
    },
    {
      type: "layouts",
      payload: [
        // ... layout definitions
      ]
    },
    {
      type: "users",
      payload: [
        // ... user definitions
      ]
    },
    {
      type: "configuration",
      payload: [
        // ... configuration entries
      ]
    }
  ],
}

Profile

A profile defines a complete workspace configuration: its theme, planning settings, and UI layout.

Required fields

Field	Type	Description
`name`	string	Display name (e.g., "Service Planning")
`code`	string	Unique identifier in UPPERCASE_WITH_UNDERSCORES

Theme

Customize the visual appearance:

theme: {
  color: "blue",    // Accent color
  scheme: "sltl"    // Color scheme
}

Colors

default (black)
primary (teal)
red
green
orange
purple
blue

Schemes

Code	Description
`sltl`	Light sidebar, Light toolbar
`sltd`	Light sidebar, Dark toolbar
`sdtl`	Dark sidebar, Light toolbar
`sdtd`	Dark sidebar, Dark toolbar (default)

Control who can access the profile:

shared: {
  global: false,           // Available to all users
  userGroup: "Planners"    // Restrict to specific group
}

Route configuration

Configure route calculation behavior:

route: {
  calculateRoutes: true,           // Enable automatic route calculation
  showSequenceIndicators: true,    // Show sequence numbers on routes
  unitOfDistance: "km"             // "km" or "mi"
}

Planning settings

Configure the planning board behavior:

planning: {
  snapInterval: "1hour",           // Task snapping interval
  range: {
    mode: "week",                  // Display range
    value: 2                       // Number of units
  },
  start: {
    mode: "startOfWeek",           // Start date mode
    value: 0                       // Offset in days
  },
  hours: {
    start: 8,                      // Working day start (0-23)
    end: 18                        // Working day end (0-24)
  }
}

Snap interval options

5min · 10min · 15min · 30min · 1hour · 2hours · 4hours · 12hours · 1day

Range modes

Mode	Description
`day`	Single day view
`week`	Week view
`month`	Month view

Start modes

Mode	Description
`today`	Start from today
`startOfWeek`	Start from beginning of current week
`startOfMonth`	Start from beginning of current month

Workspace builder

The workspace defines the UI layout as a tree of containers and components.

Container types

Column (vertical split)

Children are stacked top-to-bottom:

{
  type: "column",
  width: 30,              // Percentage width (0-100)
  content: [ ... ]        // Child elements
}

Row (horizontal split)

Children are placed side-by-side:

{
  type: "row",
  height: 50,             // Percentage height (0-100)
  content: [ ... ]        // Child elements
}

Stack (tabbed container)

Only one child visible at a time, with tabs to switch:

{
  type: "stack",
  width: 100,             // Optional
  height: 50,             // Optional
  content: [ ... ]        // Components or nested containers
}

Components

Leaf nodes that render actual UI components:

{
  type: "component",
  component: "planningBoard",    // Component identifier
  title: "Planning Board",       // Tab/header title
  id: "scheduler1",              // Unique instance ID
  layoutRef: "SCHEDULER_LAYOUT"  // Optional: reference to layout code
}

Available components

openTasks · planningBoard · plannedTasks · map · indicators · resourceFilters · details · datePicker · gantt · capacity · routeSequence · notifications

Layout example

A typical two-column layout with sidebar and main content:

workspace: [
  {
    type: "column",
    width: 25,
    content: [
      {
        type: "stack",
        content: [
          { type: "component", component: "openTasks", title: "Open Tasks" },
          { type: "component", component: "plannedTasks", title: "Planned Tasks" }
        ]
      },
      { type: "component", component: "resourceFilters", title: "Filters" }
    ]
  },
  {
    type: "column",
    width: 75,
    content: [
      {
        type: "component",
        component: "planningBoard",
        title: "Planning Board",
        id: "scheduler1",
        layoutRef: "SCHEDULER_DEFAULT"
      }
    ]
  }
]

Layouts

Layouts control how data grids and components display information. Define them inline within a component, or as standalone documents you can reuse.

Layout contexts

Each layout targets a specific component type:

planningBoard · openTasks · plannedTasks · details · capacity · gantt · routeSequence · notifications

Grid-based component layout properties

{
  context: "planningBoard",          // Target component type
  code: "SCHEDULER_COMPACT",         // Unique identifier
  name: "Compact View",              // Display name

  // Grid configuration
  columns: [
    { property: "DisplayName", width: 200 },
    { property: "Category", width: 100 }
  ],
  sorters: [
    { property: "DisplayName", direction: "ASC" }
  ],
  filters: [ ... ],
  grouper: {
    property: "Category",
    direction: "ASC"
  },
  pageSize: 50,

  // Sharing
  shared: {
    public: true,
    userGroup: "Planners"
  }
}

Planning board layout properties

Additional properties specific to the planning board (context: "planningBoard"):

{
  context: "planningBoard",
  code: "SCHEDULER_WEEK",

  viewPreset: "week",              // day, week, workWeek, month
  rowHeight: "2rows",              // 1row, 2rows, 3rows, 4rows
  resourcesGridWidth: "25%",       // Width of resource column
  fitToScreen: false,              // Fit grid to screen
  ignoreCalendars: false           // Ignore calendar configurations
}

View presets: day · week · workWeek · month

Row heights: 1row · 2rows · 3rows · 4rows

Standalone layouts document

Create reusable layouts in a separate document:

{
  type: "layouts",
  payload: [
    {
      context: "planningBoard",
      code: "SCHEDULER_COMPACT",
      name: "Compact Scheduler",
      default: true,
      viewPreset: "week",
      rowHeight: "1row",
      columns: [
        { property: "DisplayName" }
      ]
    },
    {
      context: "openTasks",
      code: "OPEN_TASKS_DEFAULT",
      name: "Default Open Tasks",
      columns: [
        { property: "TaskNo" },
        { property: "ShortDescription" },
        { property: "Category" }
      ],
      sorters: [
        { property: "TaskNo", direction: "DESC" }
      ]
    }
  ]
}

Referencing layouts

Reference standalone layouts from components using layoutRef:

{
  type: "component",
  component: "planningBoard",
  title: "Planning Board",
  id: "scheduler1",
  layoutRef: "SCHEDULER_COMPACT"    // Reference by code
}

Users

Define user accounts, their roles, and profile assignments.

User properties

{
  name: "John Smith",                        // Display name
  email: "[email protected]",           // Email
  isMSEntraID: true,                         // MS Entra ID authentication
  language: "en",                            // Language code
  timeZone: "Europe/Brussels",               // IANA timezone

  profiles: [
    { name: "SERVICE_PLANNING", default: true },
    { name: "FIELD_SERVICE" }
  ],

  roles: ["Planner", "Dispatcher"],
  timeMarkers: ["Lunch", "Break"],
  categories: ["Urgent", "Normal"],
  filterValues: ["Region A", "Region B"]
}

Users document

{
  type: "users",
  payload: [
    {
      name: "John Smith",
      email: "[email protected]",
      language: "en",
      timeZone: "Europe/Brussels",
      profiles: [
        { name: "SERVICE_PLANNING", default: true }
      ],
      roles: ["Planner"]
    },
    {
      name: "Jane Doe",
      email: "[email protected]",
      language: "nl",
      timeZone: "Europe/Amsterdam",
      profiles: [
        { name: "SERVICE_PLANNING" },
        { name: "FIELD_SERVICE", default: true }
      ],
      roles: ["Dispatcher", "Administrator"]
    }
  ]
}

Configuration

Configuration documents define system-wide application settings as key/value pairs. These settings control application behavior, integrations, and display preferences.

Configuration document

{
  type: "configuration",
  payload: [
    { key: "CompanyName", value: "Acme Corporation" },
    { key: "DurationFormat", value: "HoursMinutes" },
    { key: "DistanceUnit", value: "km" },
    { key: "EnablePlanningBoardTooltip", value: true },
    { key: "ExchangeDefaultShowAs", value: ["Office", "OutOfOffice"] }
  ]
}

Available configuration keys

Category	Key	Description
Company	`CompanyName`	Company name displayed in the application
	`CompanyAddress`	Company address for route calculations
	`CompanyAddressCountry`	Country of the company address
Display	`DurationFormat`	Duration format: `Decimal`, `HoursMinutes`, `DaysDecimal`, `DaysHours`
	`EnableAppointmentContainers`	Enable appointment containers feature
	`EnablePlanningBoardTooltip`	Show tooltips on planning board appointments
	`RenderCategoryInBackground`	Render category color in appointment background
	`AlternateRows`	Alternate row colors in planning board
	`EnableResourceCalendarsVisualisation`	Show resource calendar zones on planning board
	`ResourceZonesColor`	Color for resource availability zones (hex format)
Planning	`ApplyRequestedDates`	Apply requested date constraints when planning
	`ApplyRequestedTimes`	Apply requested time constraints when planning
	`RespectAllowedDateConstraints`	Respect allowed date constraints from source system
	`MultiDayCapacityDistributionMode`	Multi-day capacity distribution: `None`, `Constant`, `Even`
	`ResourceCalendarRecalculationMode`	Calendar recalculation: `None`, `ExtendDuration`, `UpdatePlanningQuantity`, `SubtractNonWorkingTime`
	`DoNotCountAssignment`	Do not count appointment resource in capacity calculations
	`DisableTaskDurationCalculation`	Disable automatic recalculation of planning quantity
Routing	`RouteReschedulingMode`	Route rescheduling: `DoNothing`, `UpdateTravelTime`, `Optimize`
	`CalculateRouteAndTravelTime`	Calculate route and travel time automatically
	`DistanceUnit`	Unit of distance: `km`, `mi`
	`RouteProfile`	Route profile: `car`, `van`, `truck`, `motorcycle`, `bicycle`, `pedestrian`
	`ShowWaypoints`	Show waypoints on map routes
Mobile	`MobileVisibilityModeForLockedAppointments`	Locked appointment visibility: `Locked`, `Hidden`
AI & Optimization	`SolverApiKey`	API key for route optimization solver
	`EnableRouteModel`	Enable route optimization features
	`EnableFieldServiceModel`	Enable field service solver (VRP)
	`Chat`	Show AI chat feature in sidebar
	`OpenAiApiKey`	OpenAI API key for AI chat features
Exchange Sync	`ExchangeClientId`	Microsoft Entra ID App Registration client ID
	`ExchangeClientSecret`	Microsoft Entra ID App Registration client secret
	`ExchangeClientTenant`	Microsoft Entra ID App Registration tenant ID
	`ExchangeEnableTwoWaySync`	Enable two-way sync between Exchange and Dime.Scheduler
	`ExchangeDeltaStart`	Delta start time for Exchange sync (e.g., -30 days)
	`ExchangeDeltaEnd`	Delta end time for Exchange sync (e.g., 30 days)
	`ExchangeResourcePreferencesEnabled`	Allow users to manage their Exchange sync preferences
	`ExchangeDefaultShowAs`	Busy status filter (array): `Free`, `Tentative`, `Office`, `OutOfOffice`, `WorkingElsewhere`, `Unknown`
	`ExchangeDefaultSensitivity`	Sensitivity filter (array): `Normal`, `Personal`, `Private`, `Confidential`
	`ExchangeCategoryPreset`	Category preset for Exchange appointments
	`ExchangeUseCategory`	Use category for Exchange appointments

Bundles

Bundles combine multiple documents into a single, atomic deployment. To deploy profiles, layouts, users, and configuration together, include them all in the documents array.

Bundle structure

{
  type: "bundle",
  name: "Complete Setup Package",
  version: "1.0.0",
  owner: "[email protected]",
  notificationEmail: "[email protected]",

  documents: [
    {
      type: "profile",
      payload: {
        name: "Service Planning",
        code: "SERVICE_PLANNING",
        // ... profile configuration
      }
    },
    {
      type: "layouts",
      payload: [
        // ... layout definitions
      ]
    },
    {
      type: "users",
      payload: [
        // ... user definitions
      ]
    },
    {
      type: "configuration",
      payload: [
        // ... configuration entries
      ]
    }
  ],

  mergeStrategy: {
    layouts: "append",      // append, replace, error
    users: "append",        // append, replace, error
    profiles: "last-wins"   // last-wins, first-wins, error
  }
}

Merge strategies

Control how duplicate items are handled:

Strategy	Behavior
`append`	Add new items, keep existing (default for layouts/users)
`replace`	Replace all existing items
`error`	Fail if duplicates exist
`last-wins`	Last definition wins (default for profiles)
`first-wins`	First definition wins

Examples

Basic profile

A minimal profile with planning board and open tasks:

{
  type: "profile",
  owner: "[email protected]",
  payload: {
    name: "Basic Planning",
    code: "BASIC_PLANNING",

    theme: {
      color: "blue",
      scheme: "sltl"
    },

    planning: {
      snapInterval: "1hour",
      range: { mode: "week" },
      hours: { start: 8, end: 17 }
    },

    workspace: [
      {
        type: "column",
        width: 25,
        content: [
          {
            type: "component",
            component: "openTasks",
            title: "Open Tasks"
          }
        ]
      },
      {
        type: "column",
        width: 75,
        content: [
          {
            type: "component",
            component: "planningBoard",
            title: "Planning Board",
            id: "scheduler1"
          }
        ]
      }
    ]
  }
}

Full-featured profile

A complete profile with all components and custom layouts:

{
  type: "profile",
  owner: "[email protected]",
  notificationEmail: "[email protected]",
  payload: {
    name: "Service Planning",
    code: "SERVICE_PLANNING",

    theme: {
      color: "primary",
      scheme: "sdtd"
    },

    shared: {
      global: false,
      userGroup: "Planners"
    },

    route: {
      calculateRoutes: true,
      showSequenceIndicators: true,
      unitOfDistance: "km"
    },

    planning: {
      snapInterval: "30min",
      range: { mode: "week", value: 2 },
      start: { mode: "startOfWeek" },
      hours: { start: 7, end: 19 }
    },

    workspace: [
      {
        type: "column",
        width: 20,
        content: [
          {
            type: "stack",
            content: [
              { type: "component", component: "openTasks", title: "Open Tasks" },
              { type: "component", component: "plannedTasks", title: "Planned" }
            ]
          },
          { type: "component", component: "resourceFilters", title: "Filters" },
          { type: "component", component: "datePicker", title: "Calendar" }
        ]
      },
      {
        type: "column",
        width: 60,
        content: [
          {
            type: "component",
            component: "planningBoard",
            title: "Planning Board",
            id: "scheduler1",
            layoutRef: "SCHEDULER_DETAILED"
          }
        ]
      },
      {
        type: "column",
        width: 20,
        content: [
          { type: "component", component: "map", title: "Map" },
          { type: "component", component: "details", title: "Details" },
          { type: "component", component: "indicators", title: "Indicators" }
        ]
      }
    ]
  }
}

Complete bundle

A bundle with profile, layouts, and users:

{
  type: "bundle",
  name: "Service Department Setup",
  version: "1.0.0",
  owner: "[email protected]",

  documents: [
    // Profile
    {
      type: "profile",
      payload: {
        name: "Service Planning",
        code: "SERVICE_PLANNING",
        theme: { color: "blue" },
        workspace: [
          {
            type: "column",
            width: 30,
            content: [
              { type: "component", component: "openTasks", title: "Tasks" }
            ]
          },
          {
            type: "column",
            width: 70,
            content: [
              {
                type: "component",
                component: "planningBoard",
                title: "Board",
                id: "scheduler1",
                layoutRef: "SCHEDULER_DEFAULT"
              }
            ]
          }
        ]
      }
    },

    // Layouts
    {
      type: "layouts",
      payload: [
        {
          context: "planningBoard",
          code: "SCHEDULER_DEFAULT",
          name: "Default Scheduler",
          default: true,
          viewPreset: "week",
          rowHeight: "2rows",
          columns: [
            { property: "DisplayName" },
            { property: "Category" }
          ]
        }
      ]
    },

    // Users
    {
      type: "users",
      payload: [
        {
          name: "Service Manager",
          email: "[email protected]",
          profiles: [{ name: "SERVICE_PLANNING", default: true }],
          roles: ["Administrator", "Planner"]
        },
        {
          name: "Dispatcher",
          email: "[email protected]",
          profiles: [{ name: "SERVICE_PLANNING", default: true }],
          roles: ["Planner"]
        }
      ]
    }
  ],

  mergeStrategy: {
    layouts: "append",
    users: "append",
    profiles: "last-wins"
  }
}

CI/CD integration

GitHub Actions example:

name: Deploy Configuration

on:
  push:
    branches: [main]
    paths:
      - 'config/**'

jobs:
  deploy:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4

      - name: Setup Node.js
        uses: actions/setup-node@v4
        with:
          node-version: '20'

      - name: Install CLI
        run: npm install -g @dimescheduler/setup

      - name: Validate
        run: dimescheduler-setup validate config/bundle.json5

      - name: Deploy to Sandbox
        if: github.ref == 'refs/heads/develop'
        run: dimescheduler-setup deploy config/bundle.json5 --env sandbox -y
        env:
          DS_API_KEY: ${{ secrets.DS_API_KEY_SANDBOX }}

      - name: Deploy to Production
        if: github.ref == 'refs/heads/main'
        run: dimescheduler-setup deploy config/bundle.json5 --env production -y
        env:
          DS_API_KEY: ${{ secrets.DS_API_KEY_PRODUCTION }}

Import from Dime.Scheduler

User-generated content

From the user-generated content page in Dime.Scheduler, export a bundle that contains profiles and the default layouts of the components in those layouts.

From there, import the raw JSON file into the setup package builder.

System

The System page has a button to export all supported non-transactional setup:

Profiles
Layouts
Users

From there, import the raw JSON file into the setup package builder.

What's in a package​

Two ways to use them​

Quick start​

Document types​

Profile​

Required fields​

Theme​

Colors​

Schemes​

Sharing​

Route configuration​

Planning settings​

Snap interval options​

Range modes​

Start modes​

Workspace builder​

Container types​

Column (vertical split)​

Row (horizontal split)​

Stack (tabbed container)​

Components​

Available components​

Layout example​

Layouts​

Layout contexts​

Grid-based component layout properties​

Planning board layout properties​

Standalone layouts document​

Referencing layouts​

Users​

User properties​

Users document​

Configuration​

Configuration document​

Available configuration keys​

Bundles​

Bundle structure​

Merge strategies​

Examples​

Basic profile​

Full-featured profile​

Complete bundle​

CI/CD integration​

Import from Dime.Scheduler​

User-generated content​

System​
